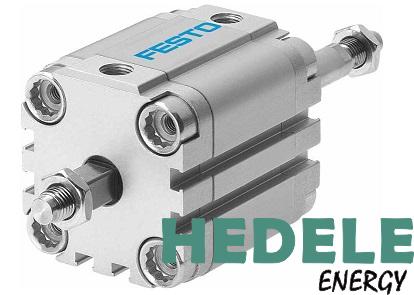

156158, ADVULQ-80-25-A-P-A-S2
delivery time:4 months
-
Stroke1 mm ... 400 mm
-
Piston diameter80 mm
-
CushioningElastic cushioning rings/plates at both ends
-
Mounting positionoptional
-
Mode of operationDouble-acting
-
Piston-rod endMale thread
-
DesignPiston
Piston rod
-
Position detectionVia proximity switch
-
Symbol00991219
-
VariantsThrough piston rod
-
Protection against torque/guideSquare piston rod
-
Operating pressure0.1 MPa ... 1 MPa
-
Operating pressure1 bar ... 10 bar
-
Operating pressure14.5 psi ... 145 psi
-
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
-
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
-
Corrosion resistance class CRC2 - Moderate corrosion stress
-
LABS (PWIS) conformityVDMA24364-B1/B2-L
-
Ambient temperature-20 °C ... 80 °C
-
Impact energy in end positions0.75 J
-
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke2827 N
-
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke2827 N
-
Type of mountingWith through-hole
With accessories
Either:
-
Pneumatic connectionG1/8
-
Material collar screwsGalvanised steel
-
Material coverWrought aluminium alloy
-
Material dynamic sealsNBR
TPE-U(PU)
-
Material piston rodHigh-alloy steel
-
Material cylinder barrelWrought aluminium alloy
