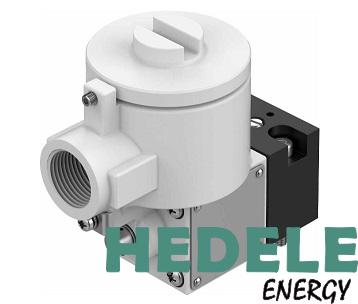

MGXDH-3/2-1.2-24DC-EX

Rate:

0.0000/5

( 0 reviews )

Item NO.: V008943 MOQ: 0

Weight: 1kgs

Package Size:

Price：

$180.00

Qty：

$180.00

Shipping：

Calculate Shipping Cost

ZLL

MGXDH-3/2-1.2-24DC-EX

delivery time:12-16weeks

Valve function3/2-way, closed, monostable
Type of actuationElectric
Operating pressure-0.09 MPa ... 0.8 MPa
Operating pressure-0.9 bar ... 8 bar
Operating pressure-13.05 psi ... 116 psi
DesignOn/off valve
Type of resetMechanical spring
CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)
Explosion protection certification outside the EUEPL Db (CN) EPL Db (IEC-EX) EPL Gb (CN) EPL Gb (IECEx)
Certificate issuing authorityATEX: CML 15 ATEX 1119X CCC-Ex: 2020322307001701 IEC: IECEx CML 17.0147X
ATEX category gasII 2G
ATEX category dustII 2D
Explosion ignition protection type for gasATEX: Ex db IIC T5 Gb CCC-Ex: Ex d IIC T3/T6 Gb
Explosion ignition protection type for dustATEX: Ex tb IIIC T100°C Db CCC-Ex: Ex tD A21 IP66 T85°C/T200°C
Explosion ambient temperatureATEX: -65°C <= Ta <= +55°C CCC-Ex: -20°C <= Ta <= +40°C
Degree of protectionIP66
Manual overrideDetenting
Flow directionNon-reversible
Symbol00991308
Duty cycle100%
Insulation material classH
Characteristic coil data24 V DC: 3.0 W
Permissible frequency fluctuations+/- 10%
Explosion protectionZone 1 (ATEX) Zone 1 (CN) Zone 1 (IEC-EX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (CN) Zone 21 (IEC-EX) Zone 22 (ATEX)
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Ambient temperature-20 °C ... 80 °C
Type of mountingCNOMO
Note on materialsRoHS-compliant
